直型浪管接頭 |
|
|
|
|
|
|
|
|
|
|
|
|
螺牙規格:公制牙（Metric),PG牙,G牙

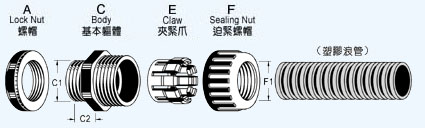

產品材質：A.C.E.F部位均采用UL認可之尼龍66(PA66)原料制成(防火等級UL94V-2)。
顏色種類:灰白色,黑色,.
工作溫度:-40℃到+100℃.
產品特性:特殊夾緊爪與夾緊圈相扣之設計,配合迫緊螺帽裝配省時便利,抗拉力特強,可防水,防塵,抗鹽,耐酸堿,酒精,油,脂及一般溶劑.
可結合自1/4″到3″塑膠浪管配合使用。
|
|
| |
| 螺牙規格 |
產品編號 |
適合塑膠浪管規格 |
螺紋外徑(C1) |
機板口徑 |
螺紋長度（C2） |
包裝 |
| 黑色（Black) |
灰色(Gray) |
| M12×1.5 |
N-MGN12-10B |
N-MGN12-10G |
PA/PE10 0-
6.5 |
1/4″ |
12 |
12～12.3 |
9 |
50pcs |
| M16×1.5 |
N-MGN16-13B |
N-MGN16-13G
|
PA/PE13
0-0010 |
5/16″ |
16 |
16～16.3 |
15 |
| N-MGN16-15B |
N-MGN16-15G |
PA/PE15.8
- 12 |
3/8″ |
| M20×1.5 |
N-MGN20-15B
|
N-MGN20-15G |
PA/PE15.8
- 12 |
3/8″ |
20 |
20～20.3 |
15 |
| N-MGN20-18B |
N-MGN20-18G |
PA/PE18.5-14.3 |
-- |
| N-MGN20-21B |
N-MGN20-21G |
PA/PE21.2
- 17 |
1/2″ |
| M25×1.5 |
N-MGN25-21B |
N-MGN25-21G |
PA/PE21.2
- 17 |
1/2″ |
25 |
25～25.4 |
15 |
| N-MGN25-25B |
N-MGN25-25G |
PA/PE25.2
- 20 |
-- |
| N-MGN25-28B |
N-MGN25-28G |
PA/PE28.5
- 23 |
3/4″ |
| M32×1.5 |
N-MGN32-34B |
N-MGN32-34G |
PA/PE34.5
- 29 |
1″ |
32 |
32～32.4 |
15 |
10pcs |
| M40×1.5 |
N-MGN40-42B |
N-MGN40-42G |
PA/PE42.5
- 36 |
1 1/4″ |
40 |
40～40.4 |
15 |
| M63×1.5 |
N-MGN63-54B |
N-MGN63-54G |
PA/PE54.5
- 48 |
2″ |
63 |
63～63.4 |
25 |
|
M90×2.0 |
N-MGN90-88B |
N-MGN90-88G |
PA/PE890
- 080 |
3″ |
90 |
90～91 |
25 |
2pcs |
| G1/4 |
N-FGN13-10B |
N-FGN13-10G |
PA/PE10
0- 6.5 |
1/4″ |
13.1 |
12.5～12.8 |
9 |
50pcs |
| G3/8 |
N-FGN17-13B |
N-FGN17-13G |
PA/PE13
0-0010 |
5/16″ |
16.6 |
16.6～16.9 |
10 |
| G1/2
|
N-FGN21-15B |
N-FGN21-15G |
PA/PE15.8
- 12 |
3/8″ |
20.9 |
20.9～21.2 |
10 |
| N-FGN21-18B |
N-FGN21-18G |
PA/PE15.8
- 12 |
-- |
20.9 |
20.9～21.2 |
10 |
| N-FGN21-21B |
N-FGN21-21G |
PA/PE21.2
- 17 |
1/2″ |
20.9 |
20.9～21.2 |
10 |
| N-FGN21H-15B |
N-FGN21H-15G |
PA/PE15.8
- 12 |
3/8″ |
20.9 |
20.9～21.2 |
15 |
| N-FGN21H-18B |
N-FGN21H-18G |
PA/PE18.5-14.3 |
-- |
20.9 |
20.9～21.2 |
15 |
| N-FGN21H-21B |
N-FGN21H-21G |
PA/PE21.2
- 17 |
1/2″ |
20.9 |
20.9～21.2 |
15 |
| G3/4 |
N-FGN26-21B |
N-FGN26-21G |
PA/PE21.2
- 17 |
1/2″ |
26.4 |
26.4～26.8 |
15 |
| N-FGN26-26B |
N-FGN26-26G |
PA/PE25.2
- 20 |
-- |
26.4 |
26.4～26.8 |
15 |
| N-FGN26-28B |
N-FGN26-28G |
PA/PE28.5
- 23 |
3/4″ |
26.4 |
26.4～26.8 |
15 |
| G1 |
N-FGN33-34B |
N-FGN33-34B |
PA/PE34.5
- 29 |
1″ |
33.2 |
33.2～33.6 |
15 |
| G1 1/4 |
N-FGN42-42B |
N-FGN42-42G |
PA/PE42.5
- 36 |
1 1/4″ |
41.9 |
41.9～42.3 |
20 |
10pcs |
| 2 |
N-FGN60-54B |
N-FGN60-54G |
PA/PE54.5
- 48 |
2″ |
60 |
60～60.4 |
20 |
| 3 |
N-FGN88-88B |
N-FGN88-88G |
PA/PE890
- 080 |
3″ |
88 |
88～89 |
25 |
2pcs |
| 備注： |
如對產品技術有特殊要求請來電說明，我們將竭誠為您提供最合理的解決方案。 |
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
 |
